Thermally Protected Varistors TMOV 20N751K 460VAC 610VDC 10KA 20D751K
Description Of TMOV and iTMOV Varistor Series
The TMOV and iTMOV thermally protected varistors represent a new development in integrated circuit protection. Both versions are comprised of radial leaded MOVs (Metal Oxide Varistors) with an integrated thermally activated element designed to open in the event of overheating due to the abnormal overvoltage, limited current, conditions outlined in UL 1449. The iTMOV varistor differs from the TMOV varistor by the inclusion of a third party lead for the purpose of indicating that the MOV has been disconnected from the circuit. This lead facilitates connection to monitoring circuitry. The TMOV and iTOMV varistors offer quick thermal response due to the close proximity of the integrated thermal element to the MOV body. The integrated configuration also offers lower inductance than most discrete solutions resulting in improved clamping performance to fast over-voltage transients. Additionally, TMOV and iTMOV varistors are wave solderable, thus simplifying end product assembly by reducing the expense and rework associated with hand soldering operations. The TMOV and iTMOV varisors are both recognized surge suppression components to UL 1449. The TMOV and iTMOV varistor’s integrated thermal element, in conjunction with appropriate enclosure design, helps facilitate TVSS module compliance to UL 1449 for both cord connected and permanently connected applications. TMOV and iTMOV varistors are compatible for use with industry standard wave-soldering processes or recommended hand-soldering methods.
Features
RoHS compliant and Lead–free available
Patented integrated thermal protection device
Designed to facilitate compliance to UL1449 3nd Edition for SPD product
High peak surge current rating up to 10kA
Wave solderable
Standard lead form and spacing option
Low leakage
-55°C to +85°C operating temp range
Three-lead version available for indication purposes
Application
- SPD Products
- AC Panel Protection Modules
- AC Line Power Supplies
- Surge ProtectedStrip Connectors
- AC Power Meters
- Relocatable AC Power Taps
- GFCI (Ground FaultCurrent Interupter)
- UPS (UninterruptablePower Supply)
- White Goods
- Plug-in SPD
-Inverters
-AC/DC Power Supplies
Specification
| Type | TMOV |
| P/N | 20N751K |
| No of pin | 2 |
| VAC | 460V |
| VDC | 610V |
| Varistor voltage | 675~750V~825 V |
| Operating temp | -55 ~ +85C |
| Surge current | 10KA |
| Rated current | 15A |
| Rated function temperature | 136C |
Dimension

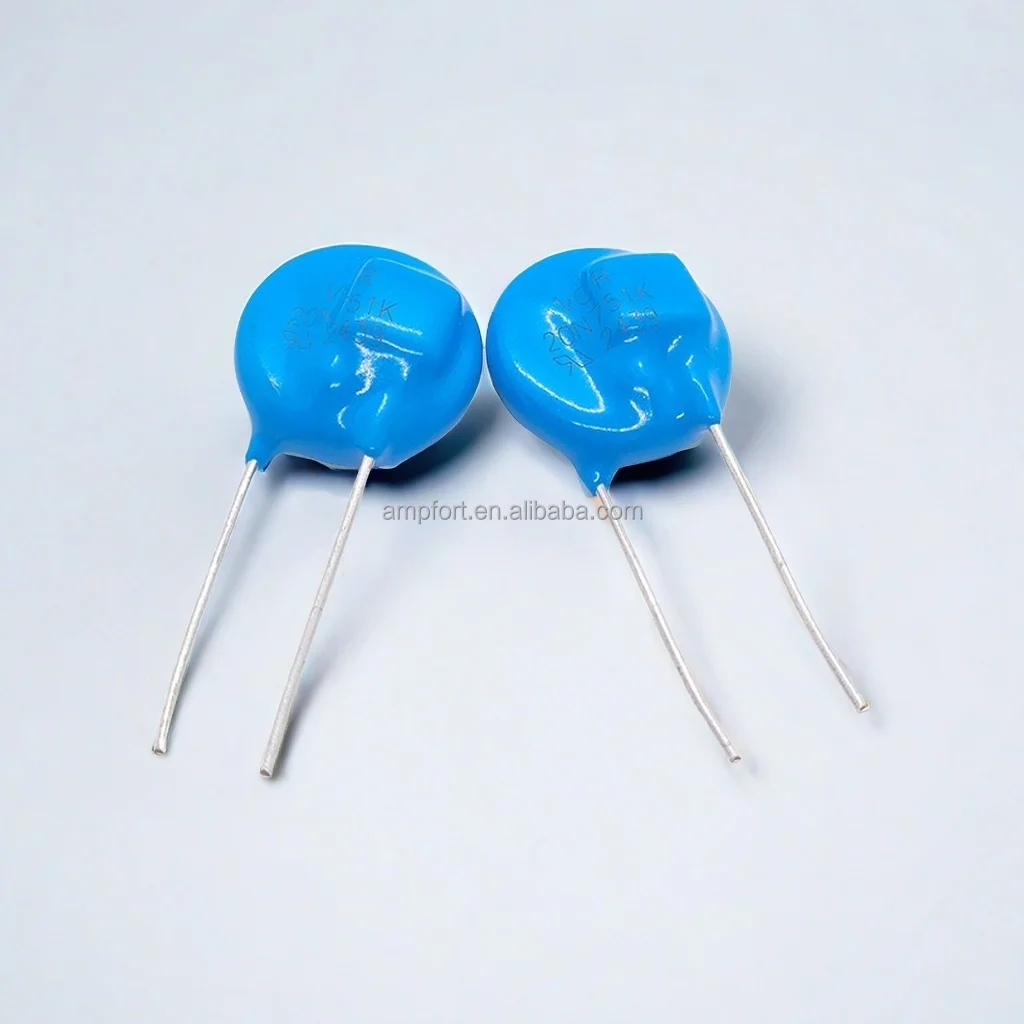

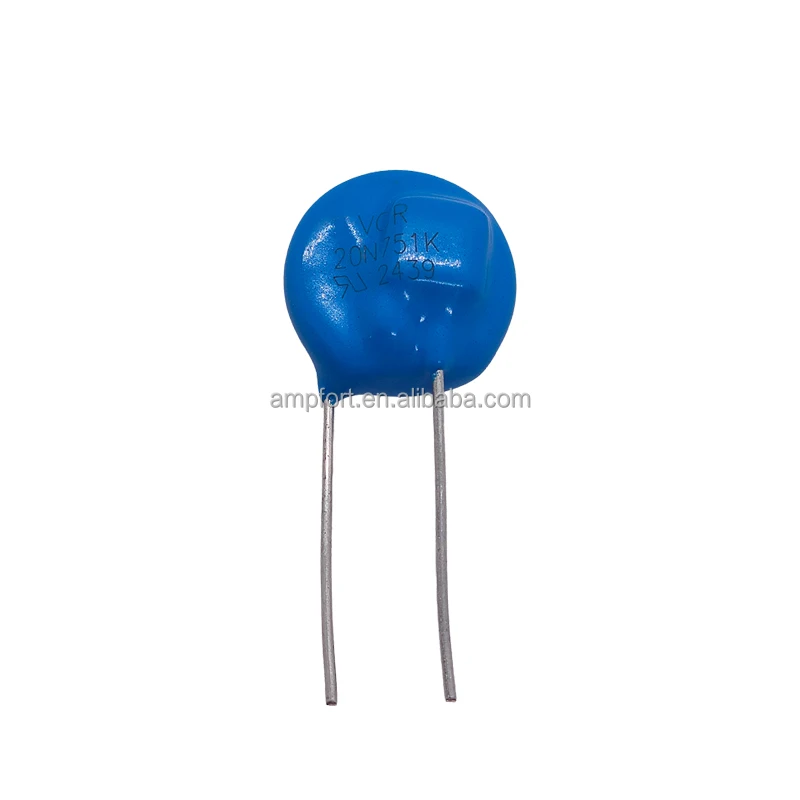

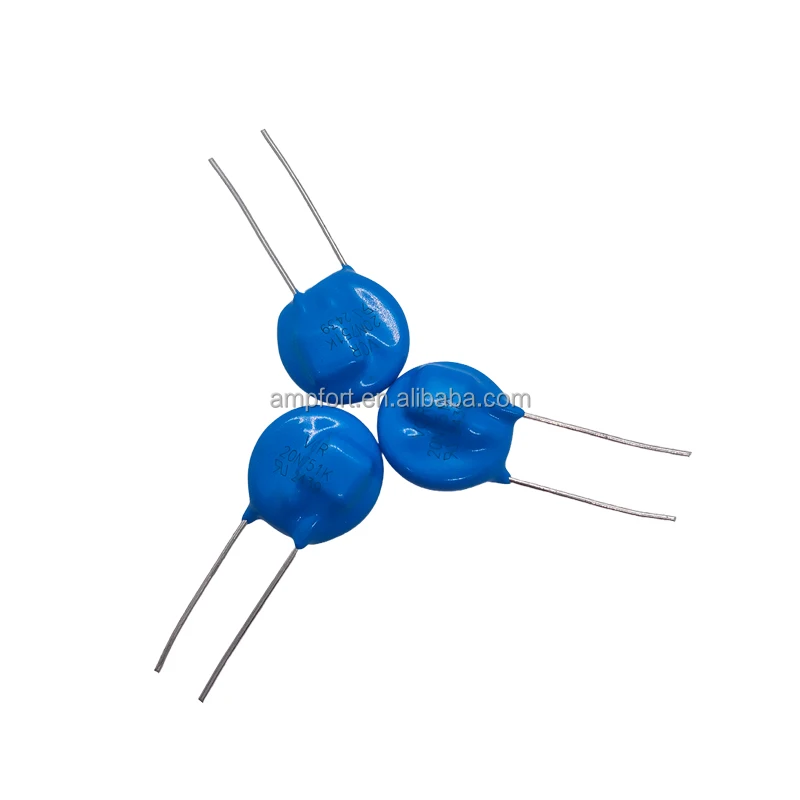

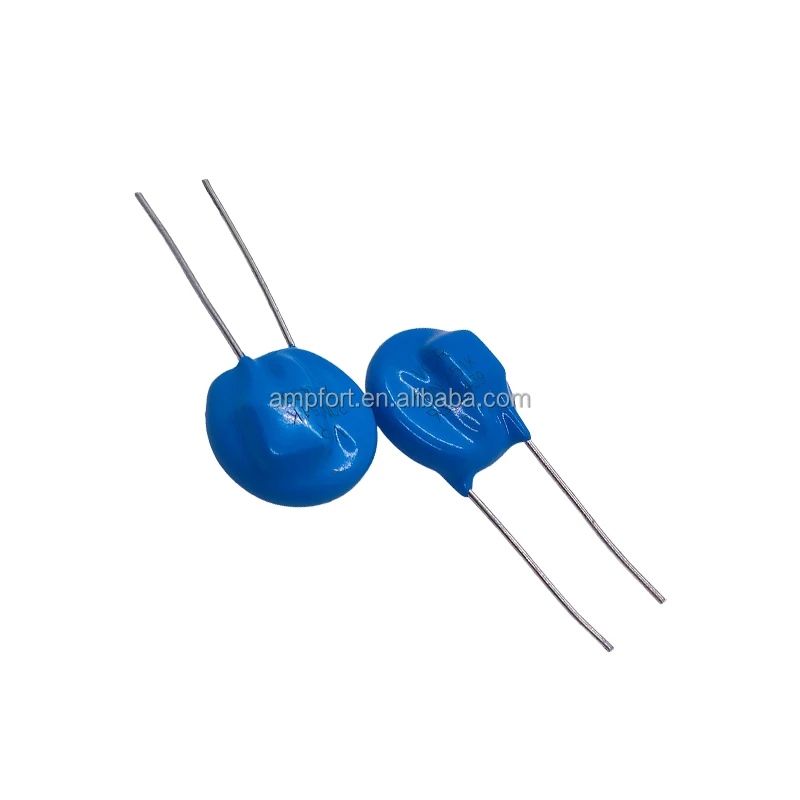

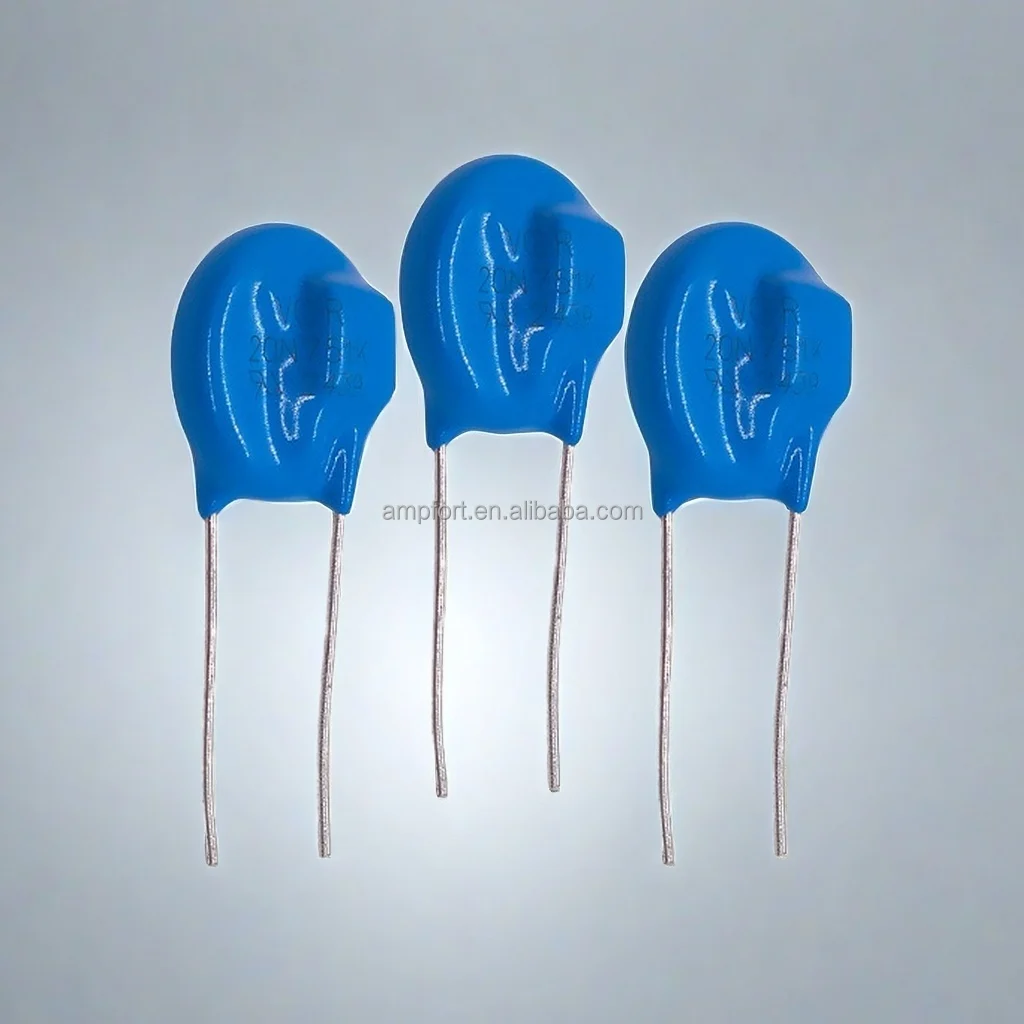

Actual Product Photos
Product Tags:
|
|
Thermally Protected Varistors TMOV 20N751K 460VAC 610VDC 10KA 20D751K Images
|
