HES Plate Bolt Connection EV Electric Vehicle Fuses 100A 150A 200A 250A 300A 350A 125Vdc 4KA For Lawn Mowers Gardening Tools

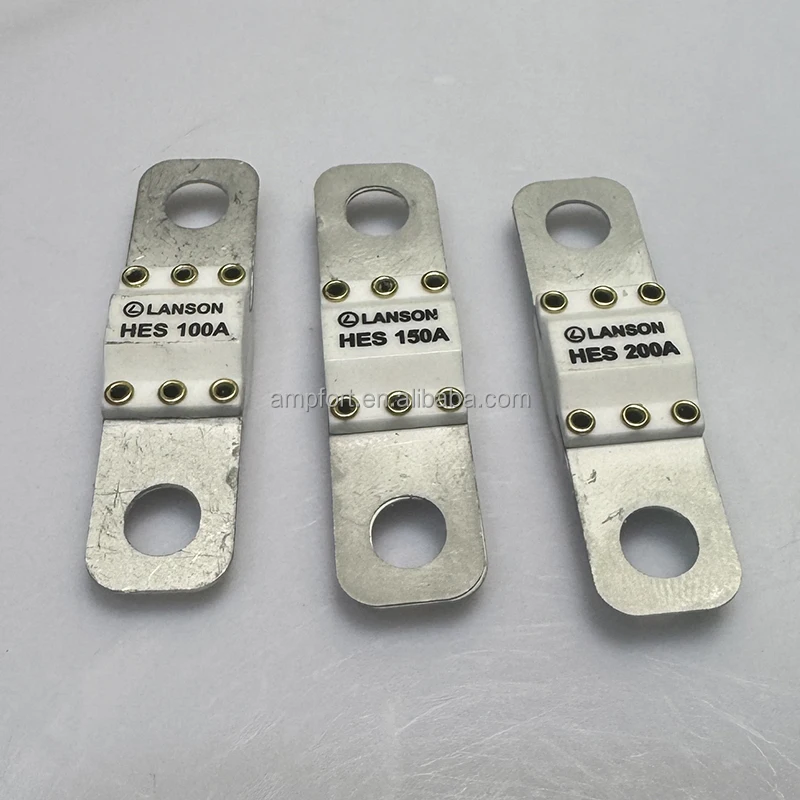

Product images example
Product Features
- Voltage rating: 125Vdc
- Current rating: 100A-350A
- Rated Breaking Capacity: 4kA at 125Vdc
Scope of application
Plate bolt connection fuse, this product is mainly used for circuit protection in low voltage and high current fields such as low-speed electric vehicles, electric motorcycles, industrial machinery electric forklifts/excavators/bulldozers, portable energy storage devices, lawn mowers and other gardening tools, battery pack protection, traction inverter protection, electric energy conversion, charging fuses, auxiliary fuses.
Agency information
- Standard Ref. To UL248-13
- Manufactured under IATF 16949 quality system
- RoHS Compliant

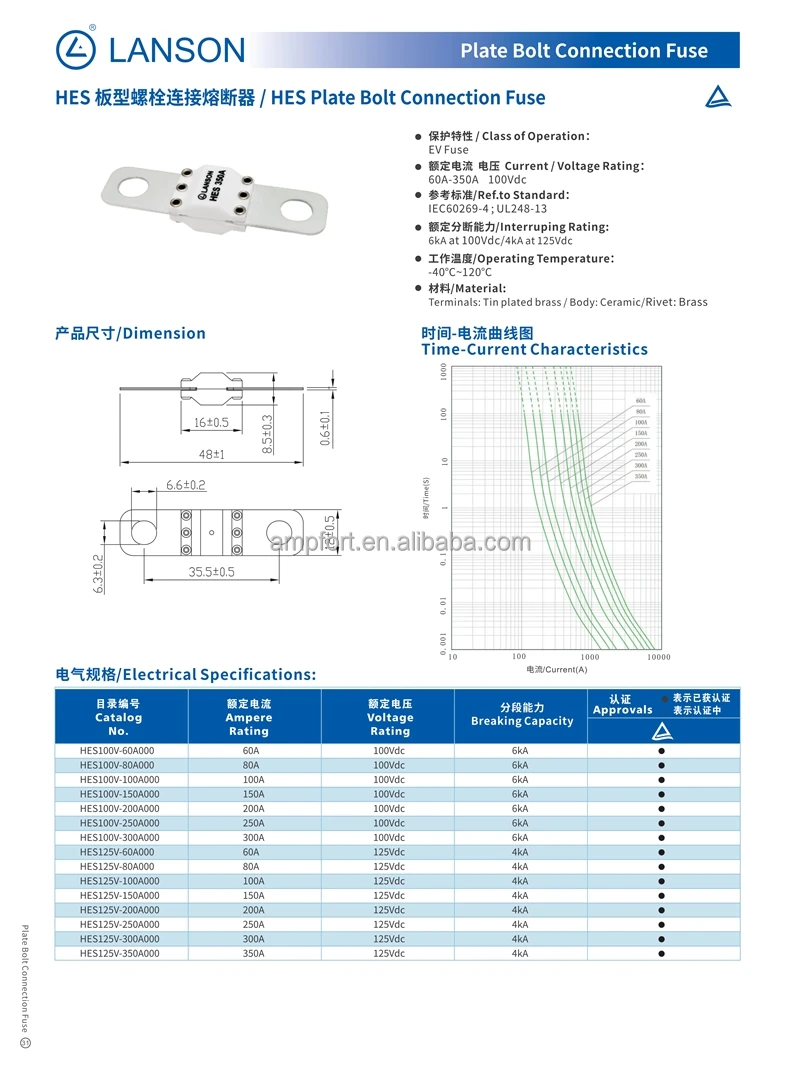

Electrical characteristic
| Part Number | Current Rating | Voltage Rating | Breaking Capacity |
| HES125V-100A000 | 100A | 125Vdc | 4kA |
| HES125V-150A000 | 150A | 125Vdc | 4kA |
| HES125V-200A000 | 200A | 125Vdc | 4kA |
| HES125V-250A000 | 250A | 125Vdc | 4kA |
| HES125V-300A000 | 300A | 125Vdc | 4kA |
| HES125V-350A000 | 350A | 125Vdc | 4kA |
Time/Current Characteristics
| % of ampere rating | Opening time |
| 100% | 4 Hours Min. |
| 300% | 10 Sec Max. |
Material Details
| NO. | Part Name | Material |
| 1 | Melt terminal | Tin plated copper |
| 2 | Body | Ceramic |
| 3 | Rivet | Brass |
Appearance
-There shall not be any remarkable stain,rust or crack on the appearances.
- Marking shall be easily legible.
Environmental characteristics
- Normal temperature: -5℃-40℃
- Permissible operating temperature:-40℃-120℃
- The altitude of the site of installation of the fuses should not exceed 2000 m above sea level and permissible altitude site of installation does not exceed 5000m.
- Relative humidity≤75%, store 3 years.
Packing
- 16 pcs fuses per plastic bag,18 plastic bags per inner box, 10 pcs inner boxes per external carton. (The actual case in accordance with the customer order)
Transportation
- During transportation and storage, Avoid water seepage and mechanical damage
